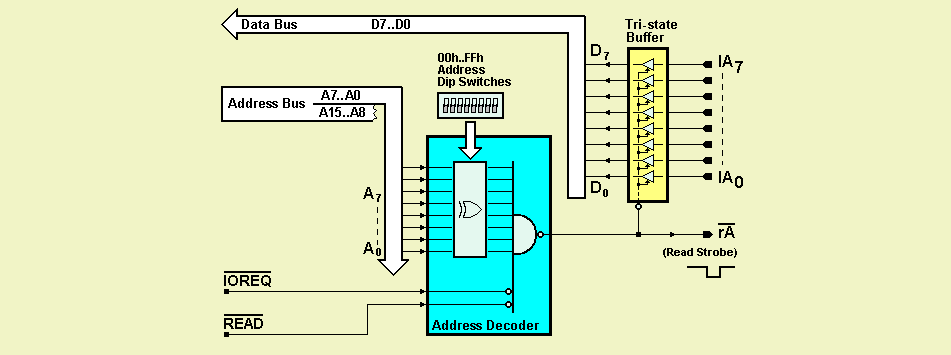

Parallel Input Ports (DMC8/D8080 system) |  |
|---|---|---|
|
Only port IA is shown (the other ones are identical). Port addresses are individually selectable throught dip switches (all the I/O space available: 00h...FFh). |
||
|
Parallel Input Ports (DMC8/D8080 system) | |
|---|---|---|
|
Only port IA is shown (the other ones are identical). Port addresses are individually selectable throught dip switches (all the I/O space available: 00h...FFh). |
||
