Combinational Networks (Deeds-DcS)



(click on the figure of interest to open the corresponding example)


Exor function (And-Or)

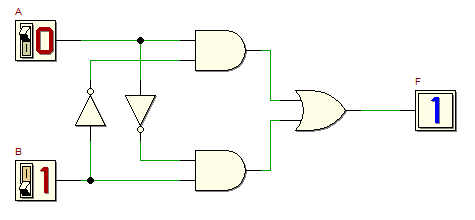

Exor Function


Decoder (2-4)

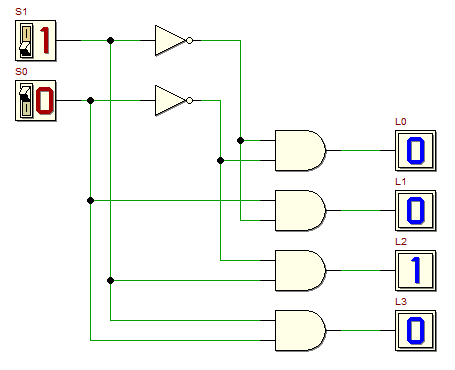

Decoder 2-4


Decoder (4-16)

(using a component from the library)

Decoder 4-16


Tri-state Buffers

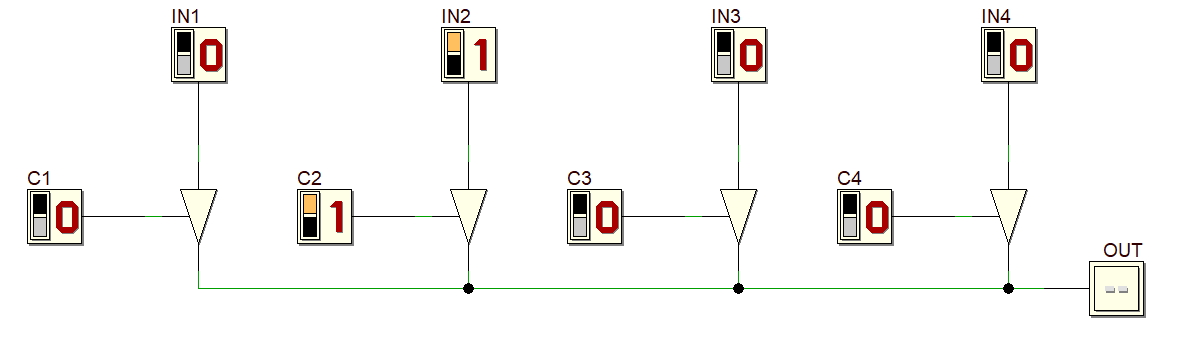

Tri-state Buffers


Tri-state and Bi-directional Buffers

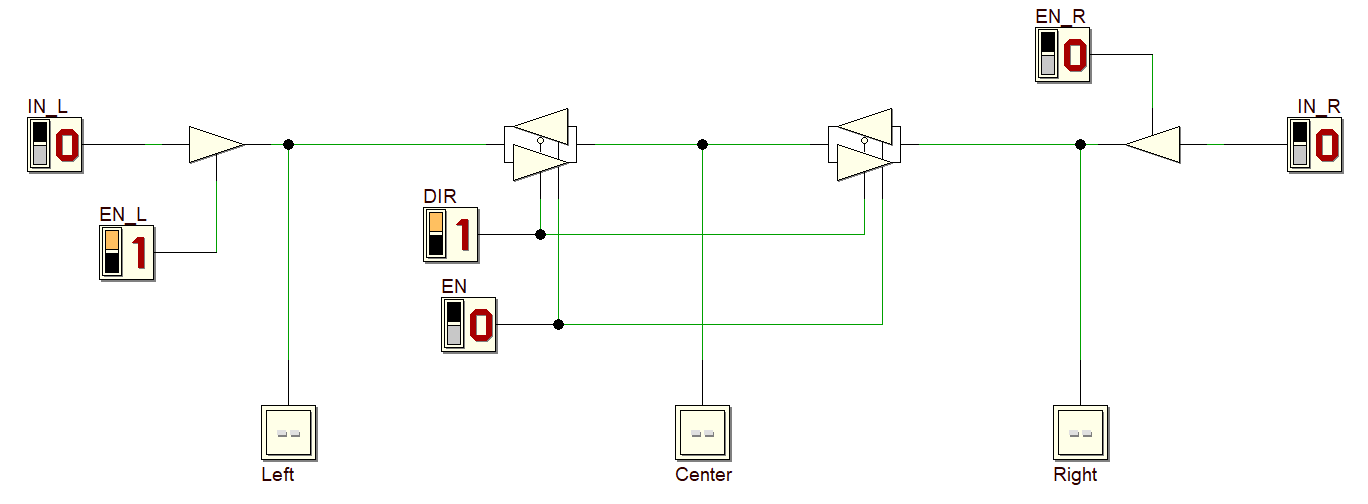

Tri-state and Bi-directional Buffers


Tri-state and Bi-directional Buffers ('bus' version)

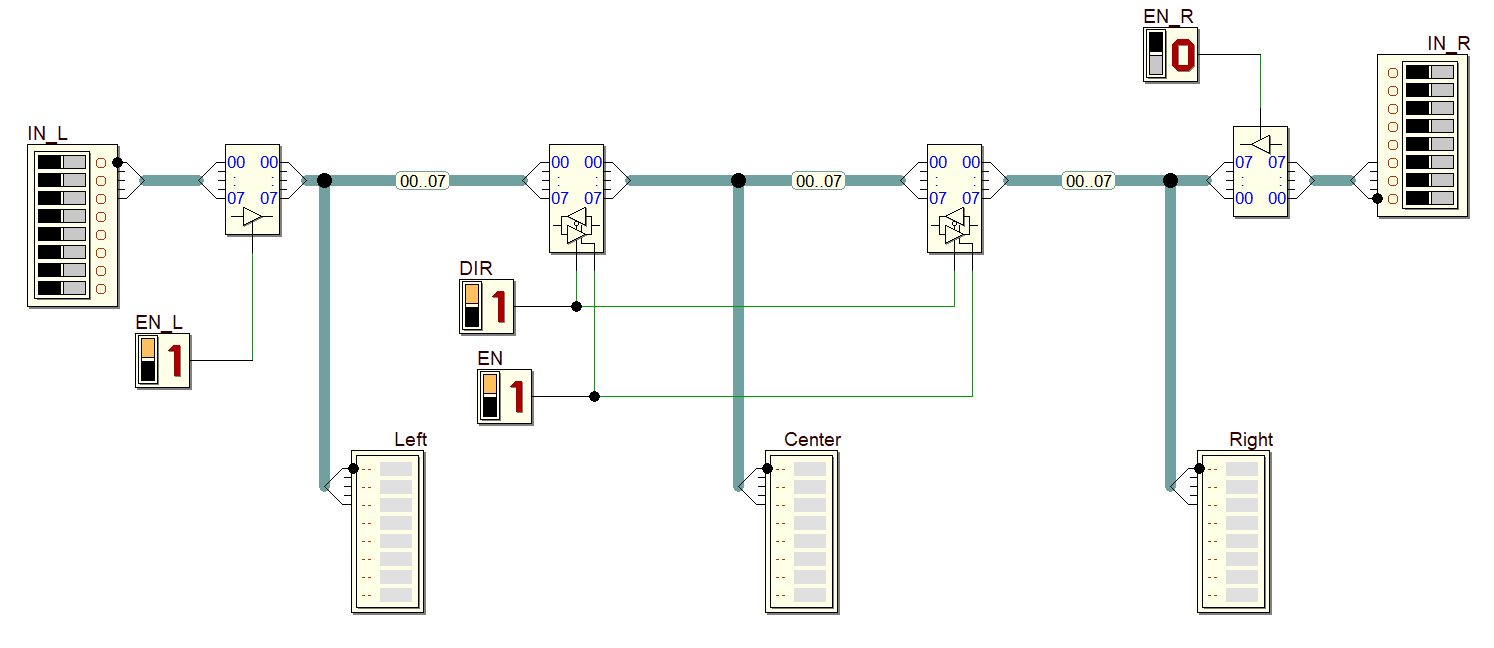

Tri-state and Bi-directional Buffers ('bus' version)


Mux (8-1)

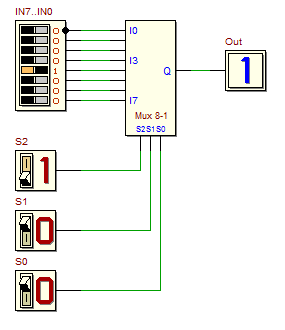

Multiplexer 8-1


Demux (1-8)

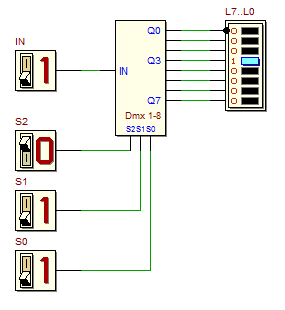

Demultiplexer 1-8


Bus connections

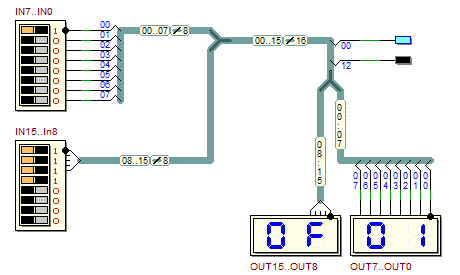

This schematic demonstrates the functionality of Bus connections, Splitters and Taps.

Busses, Splitters, Taps


More complex Demux (1-64)

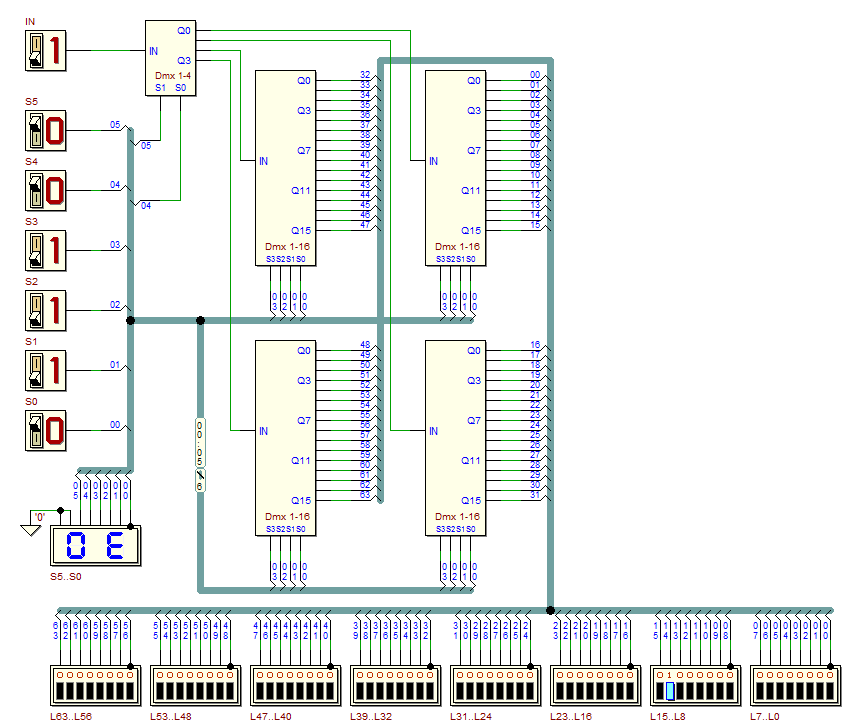

A few demultiplexer components, connected with Busses and Taps.

Demultiplexer 1-64


Arithmetic Circuit (Adder/Comparator 4 bit)

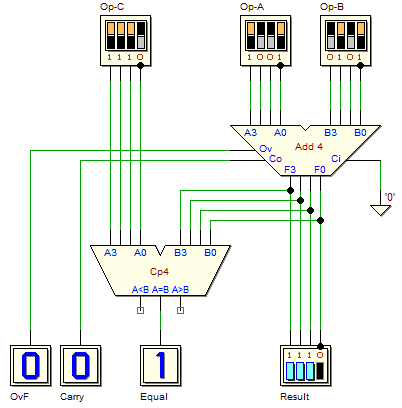

Result = Op-A plus Op-B. Equal = true if (Result = Op-C)

Arithmetic Circuit (Adder/Comparator 4 bit)


Arithmetic Circuit (Adder 8 bit, bus version)

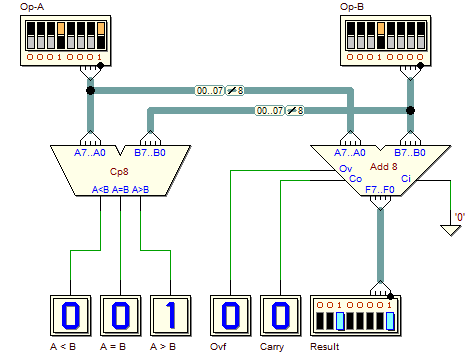

Result = Op-A plus Op-B.

Arithmetic Circuit (Adder 8 bit, bus version)


Arithmetic Circuit (Adder / Subtractor 4 bit)

(Using exor logic as Ones' Complementer and the adder Carry Input):

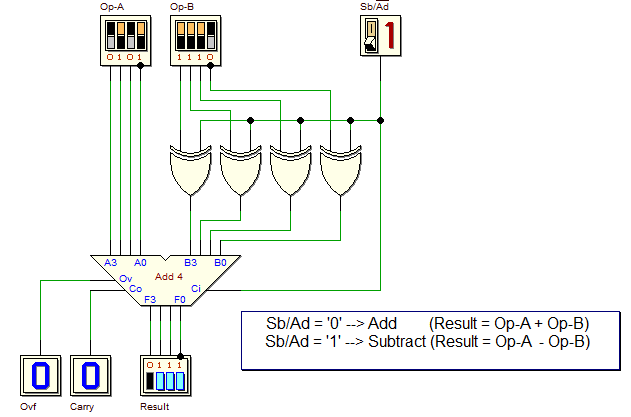

Arithmetic Circuit (Adder / Subtractor 4 bit)


Arithmetic Circuit (Adder / Subtractor 4 bit)

(Using the new Ones' or Two's Complementer):

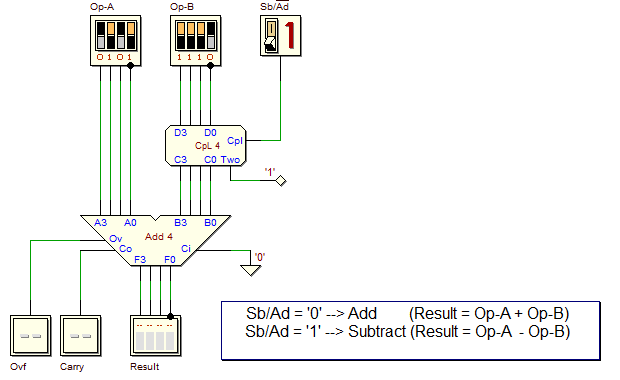

Arithmetic Circuit (Adder / Subtractor 4 bit)


Basic Arithmetic Logic Unit (ALU), using CBE



CBE Schematic:

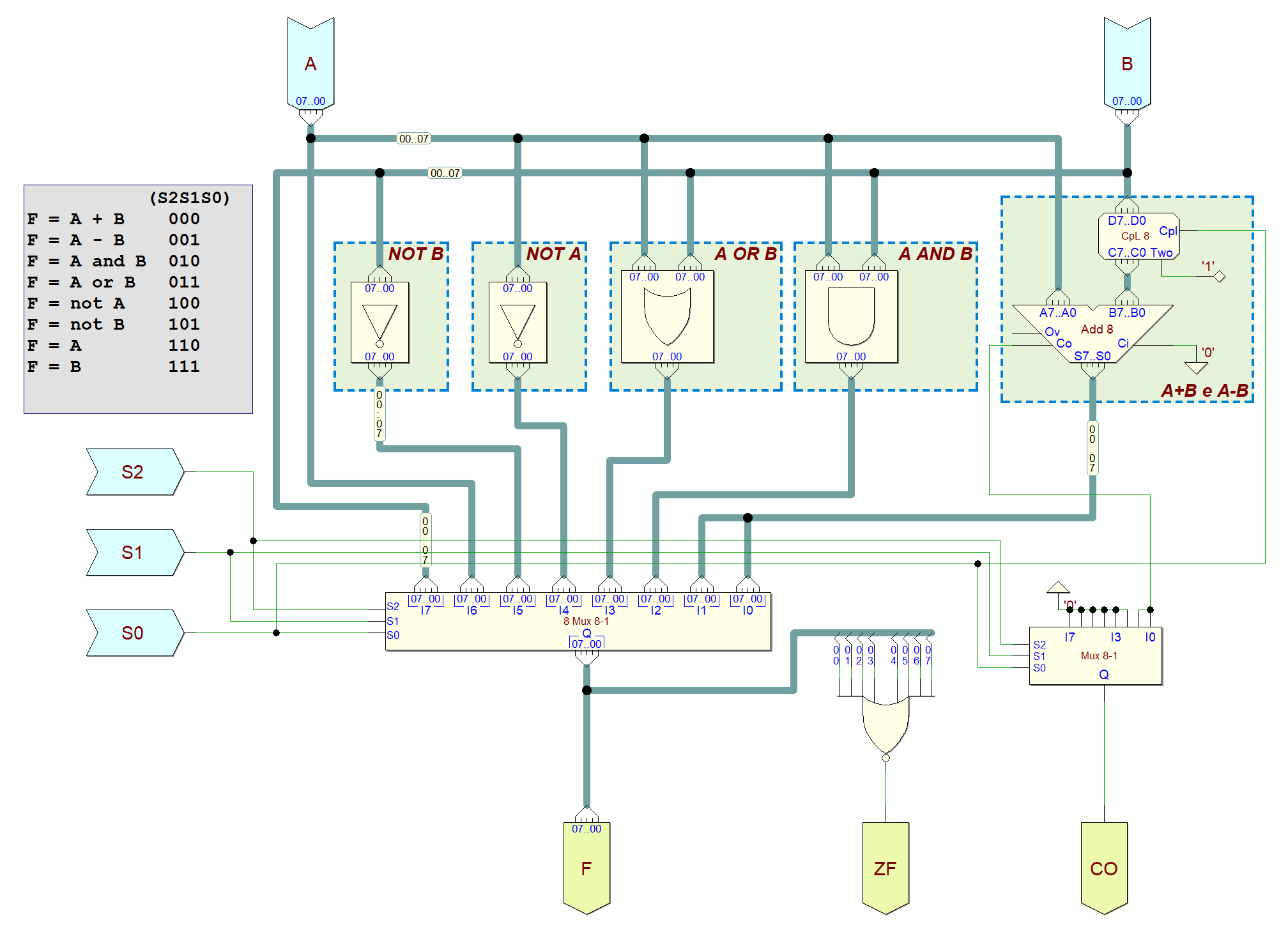

Basic Arithmetic Logic Unit, Circuit Block Element (CBE) version

CBE Symbol:

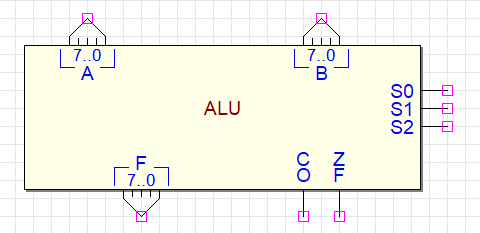

Basic Arithmetic Logic Unit: CBE Symbol

Test Circuit for the ALU above:

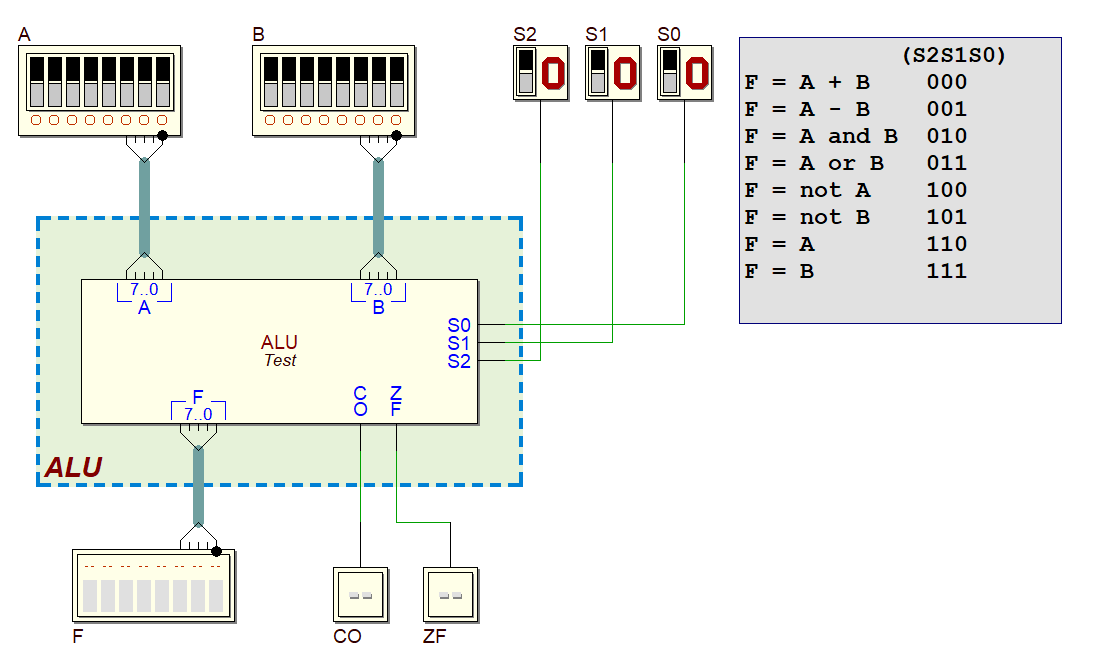

Test Circuit for the Basic Arithmetic Logic Unit
