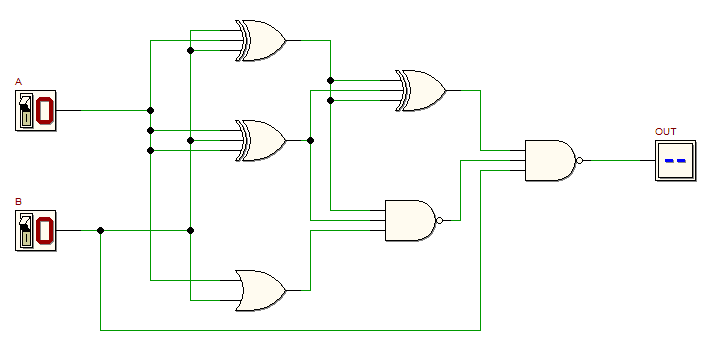

Given the following combinational network (click on the figure to open the schematic in the **d-DcS**).
Compile a **truth table **of the network. Then, just by looking at the table, design a simpler logic network with the same behavior (click here to open, in the d-DcS, the schematic to be completed). **Verify the equivalence** of the two networks, using the **Timing Diagram Simulation **. Show their behavior for **all** the combinations of **A** and **B **inputs (suitable **test sequences** are available in the **Timing Diagram window**).

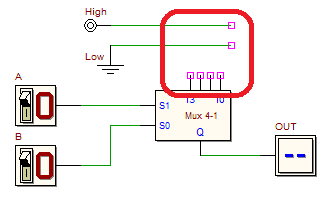

Last, re-design the network using a **4-1** **multiplexer **(**MUX 4 -1**), completing the connections highlighted in the following schematic (click on the figure to open it in the **d-DcS**):
Execute a** timing simulation **, showing the results for **all** the combinations of **A **and **B **inputs (as before, a suitable **test sequence** is available in the **Timing Diagram window**). |
