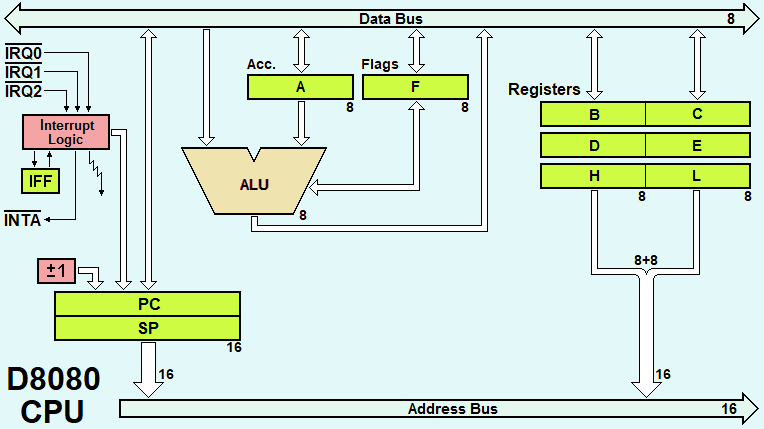

D8080 Processor Programming Model


Deeds D8080 - Instruction Set

   Deeds D8080 - Instruction Set

  Move Instructions (8 bits)

Mnemonic

Symbolic
Operation

Flags
S    Z    H     P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

MOV r, r’

r ¬ r’

•     •     •     •     •

01   r      r’



1

1

4

r, r’    Reg
000   B
001   C
010   D
011   E
100   H
101   L
111   A

MVI r, n

r ¬ n

•     •     •     •     •

00   r    110
¬    n     ®



2

2

7

MOV r,M

r ¬ (HL)

•     •     •     •     •

01   r    110



1

2

7

MOV M, r

(HL) ¬ r

•     •     •     •     •

01 110    r



1

2

7

MVI M, n

(HL) ¬ n

•     •     •     •     •

00 110  110
¬    n     ®

36

2

3

10

LDAX B

A ¬ (BC)

•     •     •     •     •

00 001  010

0A

1

2

7

LDAX D

A ¬ (DE)

•     •     •     •     •

00 011  010

1A

1

2

7

LDA nn

A ¬ (nn)

•     •     •     •     •

00 111  010
¬    n     ®
¬    n     ®

3A

3

4

13

STAX B

(BC) ¬ A

•     •     •     •     •

00 000  010

02

1

2

7

STAX D

(DE) ¬ A

•     •     •     •     •

00 010  010

12

1

2

7

STA nn

(nn) ¬ A

•     •     •     •     •

00 110  010
¬    n     ®
¬    n     ®

32

3

4

13

Notes:

r, r’ means any of the registers A, B, C, D, E, H, L.

Flag Notation:

• = flag is not affected.

  Move Instructions (16 bits)

Mnemonic

Symbolic
Operation

Flags
S    Z    H     P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

LXI B, nn

BC ¬ nn

•     •     •     •     •

00 000 001
¬    n     ®
¬    n     ®

 01

3

3

10



LXI D, nn

DE ¬ nn

•     •     •     •     •

00 010 001
¬    n     ®
¬    n     ®

 11

3

3

10

LXI H, nn

HL ¬ nn

•     •     •     •     •

00 100 001
¬    n     ®
¬    n     ®

 21

3

3

10

LXI SP, nn

SP ¬ nn

•     •     •     •     •

00 110 001
¬    n     ®
¬    n     ®

 31

3

3

10

LHLD nn

L ¬ (nn)
H ¬ (nn+1)

•     •     •     •     •

00 101 010
¬    n     ®
¬    n     ®

2A

3

5

16

SHLD nn

(nn) ¬ L
(nn+1) ¬ H

•     •     •     •     •

00 100 010
¬    n     ®
¬    n     ®

22

3

5

16

SPHL

SP ¬ HL

•     •     •     •     •

11 111 001

F9

1

1

6

XCHG

DE « HL

•     •     •     •     •

11 101 011

EB

1

1

4

XTHL

H « (SP+1)
L « (SP)

•     •     •     •     •

11 100 011

E3

1

5

19

PUSH B

SP ¬ SP - 1
(SP) ¬ B
SP ¬ SP - 1
(SP) ¬ C

•     •     •     •     •

11 000 101

 C5

1

3

11

PUSH D

SP ¬ SP - 1
(SP) ¬ D
SP ¬ SP - 1
(SP) ¬ E

•     •     •     •     •

11 010 101

 D5

1

3

11

PUSH H

SP ¬ SP - 1
(SP) ¬ H
SP ¬ SP - 1
(SP) ¬ L

•     •     •     •     •

11 100 101

 E5

1

3

11

PUSH PSW

SP ¬ SP - 1
(SP) ¬ A
SP ¬ SP - 1
(SP) ¬ Flags

•     •     •     •     •

11 110 101

 F5

1

3

11

POP B

C ¬ (SP)
SP ¬ SP + 1
B ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 000 001

 C1

1

3

10

POP D

E ¬ (SP)
SP ¬ SP + 1
D ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 010 001

 D1

1

3

10

POP H

L ¬ (SP)
SP ¬ SP + 1
H ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 100 001

 E1

1

3

10

POP PSW

Flags ¬ (SP)
SP ¬ SP + 1
A ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 110 001

 F1

1

3

10

Flag Notation:

• = flag is not affected.

  Arithmetic / Logic Instructions (8 bits)

Mnemonic

Symbolic
Operation

Flags
S    Z   H    P   C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

ADD r

A ¬ A + r

↕    ↕    ↕    ↕    ↕

10 000   r



1

1

4

r        Reg
000   B
001   C
010   D
011   E
100   H
101   L
111   A

ADI n

A ¬ A + n

↕    ↕    ↕    ↕    ↕

11 000 110
¬    n     ®



2

2

7

ADD M

A ¬ A + (HL)

↕    ↕    ↕    ↕    ↕

10 000 110

 86

1

2

7

ADC r

A ¬ A + r + CY

↕    ↕    ↕    ↕    ↕

10 001   r



1

1

4

ACI n

A ¬ A + n + CY

↕    ↕    ↕    ↕    ↕

11 001 110
¬    n     ®



2

2

7

ADC M

A ¬ A + (HL) + CY

↕    ↕    ↕    ↕    ↕

10 001 110

 8E

1

2

7

SUB r

A ¬ A - r

↕    ↕    ↕    ↕    ↕

10 010   r



1

1

4

SUI n

A ¬ A - n

↕    ↕    ↕    ↕    ↕

11 010 110
¬    n     ®



2

2

7

SUB M

A ¬ A - (HL)

↕    ↕    ↕    ↕    ↕

10 010 110

 96

1

2

7

SBB r

A ¬ A - r - CY

↕    ↕    ↕    ↕    ↕

10 011   r



1

1

4

SBI n

A ¬ A - n - CY

↕    ↕    ↕    ↕    ↕

11 011 110
¬    n     ®



2

2

7

SBB M

A ¬ A - (HL) - CY

↕    ↕    ↕    ↕    ↕

10 011 110

 9E

1

2

7

CMP r

A - r

↕    ↕    ↕    ↕    ↕

10 111   r



1

1

4

CPI n

A - n

↕    ↕    ↕    ↕    ↕

11 111 110
¬    n     ®



2

2

7

CMP M

A - (HL)

↕    ↕    ↕    ↕    ↕

10 111 110

 BE

1

2

7

ANA r

A ¬ A and r

↕    ↕    •    ↕    0

10 100   r



1

1

4

ANI n

A ¬ A and n

↕    ↕    •    ↕    0

11 100 110
¬    n     ®



2

2

7

ANA M

A ¬ A and (HL)

↕    ↕    •    ↕    0

10 100 110

 A6

1

2

7

ORA r

A ¬ A or r

↕    ↕    •    ↕    0

10 110   r



1

1

4

ORI n

A ¬ A or n

↕    ↕    •    ↕    0

11 110 110
¬    n     ®



2

2

7

ORA M

A ¬ A or (HL)

↕    ↕    •    ↕    0

10 110 110

 B6

1

2

7

XRA r

A ¬ A xor r

↕    ↕    •    ↕    0

10 101   r



1

1

4

XRI n

A ¬ A xor n

↕    ↕    •    ↕    0

11 101 110
¬    n     ®



2

2

7

XRA M

A ¬ A xor (HL)

↕    ↕    •    ↕    0

10 101 110

 A6

1

2

7

INR r

r ¬ r + 1

↕    ↕    ↕    ↕    •

00   r    100



1

1

4

INR M

(HL) ¬ (HL) + 1

↕    ↕    ↕    ↕    •

00 110 100

 34

1

3

11

DCR r

r ¬ r - 1

↕    ↕    ↕    ↕    •

00   r    101



1

1

4

DCR M

(HL) ¬ (HL) - 1

↕    ↕    ↕    ↕    •

00 110 101

 35

1

3

11

DAA

Converts Accumulator contents into packed BCD, following add with packed BCD operands

↕    ↕    ↕    ↕    ↕

00 100 111

27

1

1

4

CMA

        _
A ¬ A

•    •    •    •    •

00 101 111

2F

1

1

4

One’s complement.

Notes:

r means any of the registers A, B, C, D, E, H, L.
CY means the carry flip-flop.

Flag Notation:

• = flag is not affected, 0 = flag is reset, 1 = flag is set,
↕ = flag is set according to the result of the operation.

  Arithmetic Instructions (16 bits)

Mnemonic

Symbolic
Operation

Flags
S    Z    H    P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

DAD B

HL ¬ HL + BC

•     •     •     •    ↕1

00 001 001

 09

1

3

11



DAD D

HL ¬ HL + DE

•     •     •     •    ↕1

00 011 001

 19

1

3

11

DAD H

HL ¬ HL + HL

•     •     •     •    ↕1

00 101 001

 29

1

3

11

DAD SP

HL ¬ HL + SP

•     •     •     •    ↕1

00 111 001

 39

1

3

11

INX B

BC ¬ BC + 1

•     •     •     •     •

00 000 011

 03

1

1

6

INX D

DE ¬ DE + 1

•     •     •     •     •

00 010 011

 13

1

1

6

INX H

HL ¬ HL + 1

•     •     •     •     •

00 100 011

 23

1

1

6

INX SP

SP ¬ SP + 1

•     •     •     •     •

00 110 011

 33

1

1

6

DCX B

BC ¬ BC - 1

•     •     •     •     •

00 001 011

 0B

1

1

6

DCX D

DE ¬ DE - 1

•     •     •     •     •

00 011 011

 1B

1

1

6

DCX H

HL ¬ HL - 1

•     •     •     •     •

00 101 011

 2B

1

1

6

DCX SP

SP ¬ SP - 1

•     •     •     •     •

00 111 011

 3B

1

1

6

Notes:

1  Indicates the flag is affected by the 16 bit result of the operation.

Flag Notation:

• = flag is not affected, 0 = flag is reset, 1 = flag is set,
↕ = flag is set according to the result of the operation.

  CPU Control Instructions

Mnemonic

Symbolic
Operation

Flags
S    Z    H    P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments


CMC

          ___
CY ¬ CY

•     •     •     •    ↕

00 111 111

3F

1

1

4

Complement
carry flag.

STC

CY ¬ 1

•     •     •     •    1

00 110 111

37

1

1

4



NOP

No Operation

•     •     •     •     •

00 000 000

00

1

1

4



HLT

CPU halted

•     •     •     •     •

01 110 110

76

1

1

4



DI1

IFF ¬ 0

•     •     •     •     •

11 110 011

F3

1

1

4



EI1

IFF ¬ 1

•     •     •     •     •

11 111 011

FB

1

1

4



Notes:

1    No interrupts are issued directly after a DI or EI.
CY means the carry flag.

Flag Notation:

• = flag is not affected, 0 = flag is reset, 1 = flag is set

  Jump Instructions

Mnemonic

Symbolic
Operation

Flags
S    Z    H    P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

JMP  nn

PC ¬ nn

•      •     •     •     •

11 000 011
¬    n     ®
¬    n     ®

C3

3

3

10



JNZ  nn

if NZ is true,
PC ¬ nn

•      •     •     •     •

11  000  010
¬    n     ®
¬    n     ®



3

3

10

JZ  nn

if Z is true,
PC ¬ nn

•      •     •     •     •

11  001  010
¬    n     ®
¬    n     ®



3

3

10

JNC  nn

if NC is true,
PC ¬ nn

•      •     •     •     •

11  010  010
¬    n     ®
¬    n     ®



3

3

10

JC  nn

if C is true,
PC ¬ nn

•      •     •     •     •

11  011  010
¬    n     ®
¬    n     ®



3

3

10

JPO  nn

if PO is true,
PC ¬ nn

•      •     •     •     •

11  100  010
¬    n     ®
¬    n     ®



3

3

10

JPE  nn

if PE is true,
PC ¬ nn

•      •     •     •     •

11  101  010
¬    n     ®
¬    n     ®



3

3

10

JP  nn

if P is true,
PC ¬ nn

•      •     •     •     •

11  110  010
¬    n     ®
¬    n     ®



3

3

10

JM  nn

if M is true,
PC ¬ nn

•      •     •     •     •

11  111  010
¬    n     ®
¬    n     ®



3

3

10

PCHL

PC ¬ HL

•      •     •     •     •

11 101 001

E9

1

1

4

Flag Notation:

• = flag is not affected.

  Call and Return Instructions

Mnemonic

Symbolic
Operation

Flags
S    Z    H    P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

CALL  nn

SP ¬ SP - 1
(SP) ¬ PCH
SP ¬ SP - 1
(SP) ¬ PCL
PC ¬ nn

•     •     •     •     •

11 001 101
¬    n     ®
¬    n     ®

CD

3

5

17



CNZ   nn

if NZ is true,
SP ¬ SP - 1
(SP) ¬ PCH
SP ¬ SP - 1
(SP) ¬ PCL
PC ¬ nn

•     •     •     •     •

11 000  100
¬    n     ®
¬    n     ®

 C4

3
3

3
5

10
17

if NZ is false
if NZ is true

CZ  nn

if Z is true,
see above

•     •     •     •     •

11 001  100
¬    n     ®
¬    n     ®

 CC

3
3

3
5

10
17

 if Z is false
if Z is true

CNC  nn

if NC is true,
see above

•     •     •     •     •

11 010  100
¬    n     ®
¬    n     ®

 D4

3
3

3
5

10
17

 if NC is false
if NC is true

CC  nn

if Z is true,
see above

•     •     •     •     •

11 011  100
¬    n     ®
¬    n     ®

 D8

3
3

3
5

10
17

 if C is false
if C is true

CPO  nn

if PO is true,
see above

•     •     •     •     •

11 100  100
¬    n     ®
¬    n     ®

 E4

3
3

3
5

10
17

 if PO is false
if PO is true

CPE  nn

if PE is true,
see above

•     •     •     •     •

11 101  100
¬    n     ®
¬    n     ®

 EC

3
3

3
5

10
17

 if PE is false
if PE is true

CP  nn

if P is true,
see above

•     •     •     •     •

11 110  100
¬    n     ®
¬    n     ®

 F4

3
3

3
5

10
17

 if P is false
if P is true

CM  nn

if M is true,
see above

•     •     •     •     •

11 111  100
¬    n     ®
¬    n     ®

 FC

3
3

3
5

10
17

 if M is false
if M is true

RET

PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 001 001

C9

1

3

10



RNZ

if NZ is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 000  000

 C0

1
1

1
3

5
11

if NZ is false
if NZ is true

RZ

if Z is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 001  000

 C8

1
1

1
3

5
11

if Z is false
if Z is true

RNC

if NC is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 010  000

 D0

1
1

1
3

5
11

if NC is false
if NC is true

RC

if C is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 011  000

 D8

1
1

1
3

5
11

if C is false
if C is true

RPO

if PO is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 100  000

 E0

1
1

1
3

5
11

if PO is false
if PO is true

RPE

if PE is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 101  000

 E8

1
1

1
3

5
11

if PE is false
if PE is true

RP

if P is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 110  000

 F0

1
1

1
3

5
11

if P is false
if P is true

RM

if M is true,
PCL ¬ (SP)
SP ¬ SP + 1
PCH ¬ (SP)
SP ¬ SP + 1

•     •     •     •     •

11 111  000

 F8

1
1

1
3

5
11

if M is false
if M is true

RST i

SP ¬ SP - 1
(SP) ¬ PCH
SP ¬ SP - 1
(SP) ¬ PCL
PC ¬ p

•     •     •     •     •

11   t   111



1

3

11

_i_   _t_   __p__
 0    000   0000h
 1    001   0008h
 2    010   0010h
 3    011   0018h
 4    100   0020h
 5    101   0028h
 6    110   0030h
 7    111   0038h

Flag Notation:

• = flag is not affected.

  Shift and Rotate Instructions

Mnemonic

Symbolic
Operation

Flags
S    Z    H     P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

RLC

•     •     •     •     ↕

00 000 111

07

1

1

4



RAL

•     •     •     •     ↕

00 010 111

17

1

1

4

RRC

•     •     •     •     ↕

00 001 111

0F

1

1

4

RAR

•     •     •     •     ↕

00 011 111

1F

1

1

4

Notes:

CY means the carry flip-flop.

Flag Notation:

• = flag is not affected, 0 = flag is reset, 1 = flag is set,
↕ = flag is set according to the result of the operation.

  Input / Output Instructions

Mnemonic

Symbolic
Operation

Flags
S    Z    H    P    C

Opcode
76 543 210

Hex

Bytes

M
Cycles

Clock
Cycles

Comments

IN n

A ¬ (n)

•     •     •     •     •

11 011 011
¬    n     ®

DB

2

3

11



OUT n

(n) ¬ A

•     •     •     •     •

11 010 011
¬    n     ®

D3

2

3

11

Flag Notation:

• = flag is not affected, 0 = flag is reset, 1 = flag is set,
↕ = flag is set according to the result of the operation.
